The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4×4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package

Technical Data:

■Length 200.5mm
■Width 87mm
■eight 86.0mm
■Chassis Type MX-01
■Wheel Base 110mm
■Tread F/R:72.7mm
■Weight 223g (excl. battery)
■Motor/Engine 130 Class
■Gear Ratio 55.44：1/30.80：1/46.20：1
                     27.72：1/39.60：1/34.65：1 　
■Front Tire Diameter Φ42.0mm
■Rear Tire Diameter Φ42.0mm
■Front Tire Width 14.3mm
■Rear Tire Width 14.3mm
■Battery 4 x AAA alkaline
■Transmitter Syncro KT-531P
■Speed Approx. 3.3km/h〜6.6km/h  (Pinion gears 10T〜 20T)
■Running Time Approx. 60 mins

Kit contents

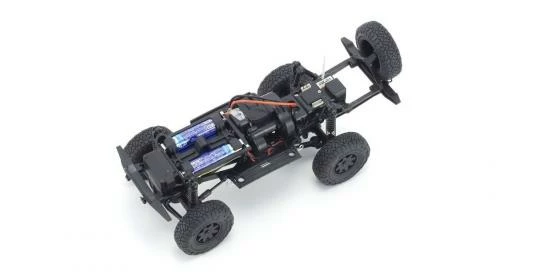

●Complete chassis with built-in electronics.
●Factory-painted body complete with many fine details

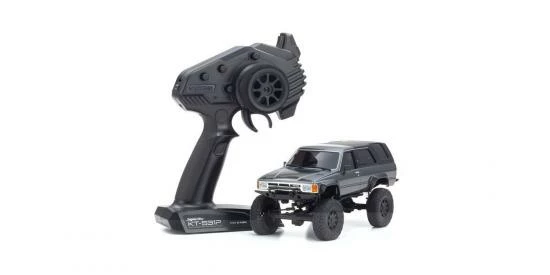

●KT-531P 2.4GHz transmitter
●Pinion gear set（10T、12T、14T、16T、18T、20T）
●3 types of pinion gear spacers

Required for operation

●4 x AAA batteries for the transmitter
●4 x AAA batteries for chassis （Alkaline or NiMH）

Spec

• Brand: Kyosho
• Part No: K.32522GM
• Barcode: 4548565380053
• Scale: 1:28
• Build Level: Assembled (RTR)
• Power Source: Electric – Brushed
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
